New Medical Building Parking Lot

Calvac Paving’s commitment to service means that we often have projects that present unique challenges. For a medical center in Menlo Park, there were several problems that had to be overcome. First, the base below the asphalt had become unstable, leading to depressions and potholes in the surface. Due to these conditions the existing asphalt had to be removed, the baserock graded and compacted. Second, the existing asphalt had to be off hauled and new pavement placed over the recompacted baserock. Finally, because it is an active office, we had to complete the removal, replacement and striping in a single Saturday.

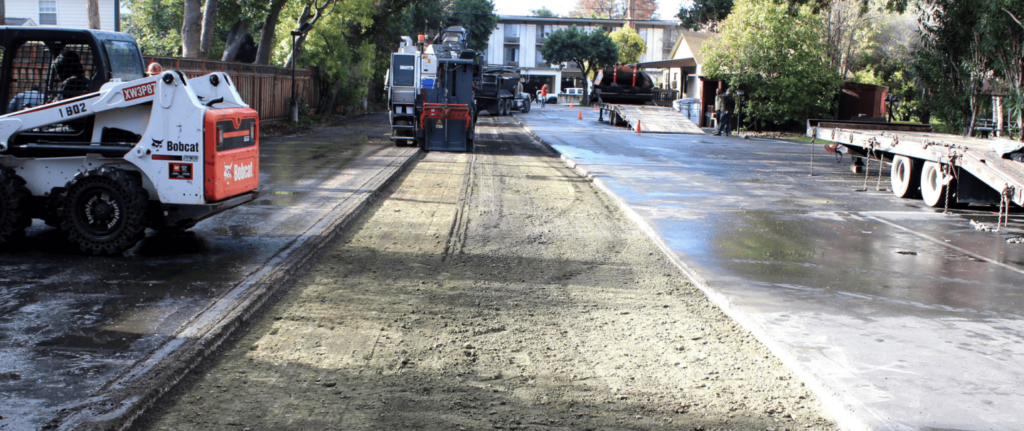

When we first arrived, the parking area was riddled with potholes and puddles from the destabilized base. The existing striping and stall design of the parking lot was several years out of step with current ADAS and CBC standards for access. We then scheduled the off haul of recycle and import of hotmix asphalt tonnage and we mobilized the equipment and manpower necessary to complete the job, as well as staging the striping crew. Since we had a very tight window and no margin for error, we knew this had to be done efficiently and correctly the first time, with no delays. After blocking off the area so that we could work safely, we began grinding out the existing asphalt using a specialized milling machine. This pulverized the existing asphalt so that we could haul it to a local recycling plant, while exposing the existing baserock surface. Once that was completed, we graded and compacted the baserock so that Calvac Paving could create a stable, uniform surface that would create the necessary drainage and eliminate the puddles. This process, known as “grading,” is key to establishing a surface safe for vehicles and pedestrians while permitting stormwater drainage, which helps prevent subgrade destabilization by not allowing water to collect and seep through the asphalt.

Once the grade had been established and the baserock compacted to comply with industry standards and project specifications, we placed fresh hotmix asphalt in two 2” layers, or “lifts.” Compacting the asphalt in lifts as it was placed, created an end product that is more durable, less prone to cracking, potholing and other problems seen with asphalt paving. Once the second lift was placed, and we fog sealed the surface, we then had to layout and stripe the parking lot up to current ADAS and California building code requirements for correct access to the building and parking areas.

The result was a very smooth and puddle free, pedestrian, parking and driving surface that is far more stable than the previous paving, as well as meeting the latest standards. At the end of the project, we had removed and replaced more than 150 tons of hotmix asphalt in a single day, which was a quick turnaround for this volume of material and the job specific constraints.

Calvac Paving has been serving the Bay Area for over 40 years, from road rehabilitation projects in Los Altos Hills to this medical center parking lot overhaul in Menlo Park, and we have constructed, repaired or remediated thousands of properties. Each project requires a slightly different approach, due to project requirements, schedules, access concerns and other factors. We pride ourselves as the Bay Area’s solution to those supposedly “challenging” jobs, combining our reputation for safety and efficiency with the attitude that there’s no reason to consider a job “challenging” with the right safety, tools, training and equipment.

We also offer an industry-leading three-year warranty on the finished product to our qualifying clients as proof that we stand behind our product and the workmanship that goes into it. We are committed to providing our clients and stakeholders the best and most efficient results in the business, while making sure that the product that we leave behind is one we can look back at with pride. For more information about how Calvac Paving can help with your job, from a major roadway reconstruction to building an ADA-compliant access point to restriping a parking lot, we invite you to call us at:
